Yield Strength vs Tensile Strength: Key Differences, Formula & Applications

September 24, 2026

In engineering and material science, understanding the strength characteristics of materials is essential for designing safe, durable, and efficient structures and equipment. Two of the most important mechanical properties used to evaluate material performance are yield strength and tensile strength. These properties help engineers determine how stainless steel will behave under different loading conditions and play a critical role in selecting the right material for industrial applications.

This article explores the concepts, formulas, testing methods, and industrial applications of these key mechanical properties while highlighting the importance of stainless steel in modern engineering.

What is Yield Strength?

 Yield strength refers to the stress at which a material begins to deform permanently. For stainless steel, because the stress-strain curve transitions gradually without a sharp yield point, yield strength is standardly reported as the 0.2% offset proof stress, i.e. the stress that produces 0.2% permanent strain, determined graphically by drawing a line parallel to the elastic region.

Why Yield Strength is Important in Stainless Steel

Yield strength determines the maximum stress a material can handle without suffering permanent damage. Engineers use yield strength values to establish safe working loads and design limits. Yield strength helps engineers ensure that beams, supports, and industrial equipment maintain their shape under load.

Yield Point in Stainless Steel Explained

 Unlike carbon steel, stainless steel does not exhibit a sharp, identifiable yield point on its stress-strain curve. The curve transitions gradually from elastic to plastic behaviour. Therefore, the 0.2% proof stress (Rp0.2) is used as the engineering equivalent of the yield point. This is identified on the stress-strain curve by drawing a line parallel to the initial elastic slope, offset at 0.2% strain. Its intersection with the original curve defines the yield strength.

Yield strength is sometimes referred to as the yield point or proof stress, particularly when discussing the stress level at which permanent deformation begins.

What is Tensile Strength?

 The ultimate tensile strength (UTS) represents the highest point on the engineering stress-strain curve. Beyond this point, the material undergoes necking, i.e. a localised reduction in cross-section, after which stress (on an engineering basis) drops until fracture occurs. UTS therefore indicates the maximum load-bearing capacity of the material, not the actual fracture point.

How Tensile Strength Affects Material Performance

Tensile strength directly influences a material’s ability to withstand stretching, pulling, and high-load applications.

Benefits of high tensile strength include:

• Improved resistance to fracture
• Better performance under extreme loads
• Enhanced durability in demanding environments
• Greater structural reliability

The tensile strength of stainless steel makes it suitable for applications where strength and corrosion resistance must work together.

Industrial Importance of Tensile Strength

Industries rely on tensile strength values to:

• Design pressure vessels
• Evaluate structural safety
• Select materials for heavy-duty equipment
• Assess performance under dynamic loading
• Ensure compliance with international standards

In sectors such as construction, transportation, and manufacturing, tensile strength is a key performance indicator.

Yield Strength vs Tensile Strength: Key Differences

Although often discussed together, these mechanical properties of stainless steel represent different stages of material behaviour.

Difference Between Yield Strength and Tensile Strength

The difference between these properties lies primarily in what each measures. Yield strength indicates when permanent deformation begins, while tensile strength indicates the maximum stress a material can withstand before failure.

For engineers asking what the difference between yield strength and tensile strength is, the answer is straightforward:

• Yield strength measures resistance to permanent deformation.
• Tensile strength measures resistance to fracture.

Both properties are essential for safe and efficient design.

Yield Strength vs Tensile Strength Comparison Table

Which Property is More Important?

There is no universal answer because both properties serve different purposes. For applications where dimensional stability is critical, yield strength is often more important. Examples include building structures, bridges, and industrial frameworks.

From a structural engineering standpoint, yield strength is generally prioritised because structures must remain functional without permanent deformation. However, tensile strength provides an additional safety benchmark to prevent catastrophic failure.

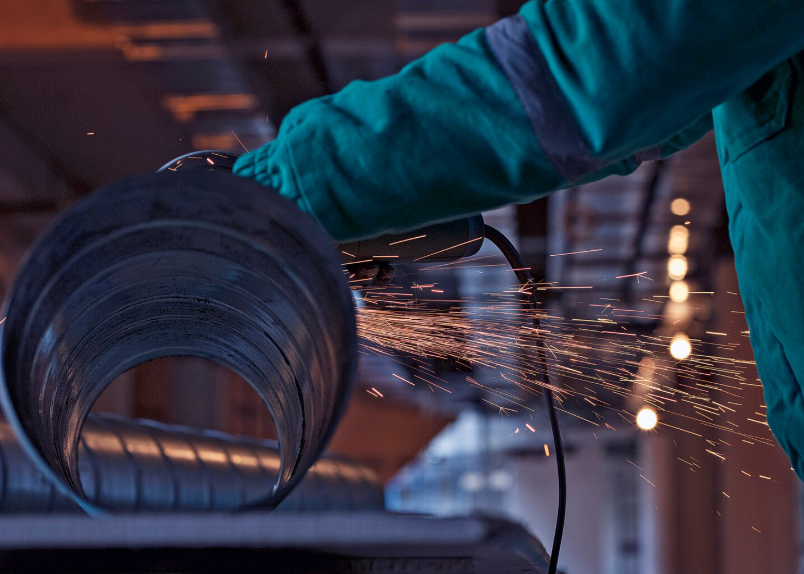

Caption: Stainless steel fabrication using welding

Formula for Yield Strength and Tensile Strength

Understanding the mathematical basis of strength calculations helps engineers evaluate material performance accurately.

H3 – Yield Strength Formula

The yield strength formula is:

σy = Fy / A0

Where:

σy = Yield strength

Fy = Load at yield point

A0 = Original cross-sectional area

But importantly, σy (Rp0.2) can be determined from stress-strain graphs using 0.2% offset line as explained in the earlier sections.

However, this formula helps calculate the stress at which permanent deformation begins.

Tensile Strength Formula

The tensile strength formula is:

σu = Fu / A0

Where:

σu = Ultimate tensile strength

Fu = Maximum applied load

A0 = Original (undeformed) cross-sectional area

 This formula gives the engineering (nominal) tensile strength. The true stress at fracture is higher because the actual cross-section decreases due to necking, but engineering stress values are the standard for design and material specifications. In actual cases, σu can be determined directly from stress-strain graphs using data software.

Example Calculations

1. Yield Strength:

σy = Fy / A0

Suppose:

Yield load (Fy) = 80,000 N

Cross-sectional area (A0) = 400 mm²

Calculation:

σy = 80,000 / 400

σy = 200 MPa

Therefore, the material’s yield strength is 200 MPa.

2. Tensile Strength:

σu = Fu / A0

Suppose:

Maximum load (Fu) = 206,000 N

Cross-sectional area (A0) = 400 mm²

Calculation:

σu = 206,000 / 400

σu = 515 MPa

Therefore, the engineering tensile strength is 515 MPa.

How Tensile Testing of  Stainless Steel is Conducted

The primary method used to determine strength properties is tensile testing.

What is a Tensile Test?

A tensile test measures how a material reacts when subjected to a controlled pulling force until failure occurs. The process helps determine ultimate tensile strength, elongation, ductility, and material toughness. The data generated from tensile testing of stainless steel is essential for quality control and engineering design.

Tensile Testing Equipment and Process

The testing process typically involves:

1. Preparing a standardised specimen
2. Mounting it in a universal testing machine
3. Attaching a calibrated extensometer to the gauge length of the specimen to accurately measure strain throughout the test, essential for determining the 0.2% offset yield strength
4. Applying a gradually increasing tensile load
5. Recording stress and strain values
6. Generating a stress-strain curve
7. Identifying yield and tensile strength values

Modern testing systems provide highly accurate measurements for industrial applications.

Yield Strength Test Standards

 A tensile test is conducted according to recognised standards such as ASTM E8/E8M (widely used in the US and internationally) and ISO 6892-1 (the international standard, which also superseded and replaced the former EN 10002-1). This is a required test from which both yield and tensile strength are determined. These standards ensure consistency, accuracy and repeatability in material testing.

Yield Strength and Tensile Strength of Stainless Steel

Stainless steel offers an excellent balance of strength, corrosion resistance, and durability.

Strength Comparison of Common Stainless Steel Grades

Note: Values shown are minimum specified values in the annealed condition per ASTM A240. Actual material properties from Mill Test Reports will typically exceed these minimums.

Grades 304 and 316 share identical minimum mechanical properties in the annealed condition. The selection between them is driven by corrosion resistance requirements, not mechanical strength. Grade 316 contains additional 2–3% molybdenum for superior chloride resistance.

Also note – Tensile testing data also yields elongation at fracture – a measure of ductility. For austenitic stainless steels like 304 and 316, minimum elongation is 40% per ASTM A240, reflecting excellent formability. The ratio of tensile to yield strength also indicates strain-hardening capacity and is an important design consideration.

Factors Affecting Stainless Steel Strength

Several factors influence stainless steel mechanical properties, including:

• Chemical composition
• Heat treatment
• Cold working
• Grain structure
• Manufacturing processes
• Service temperature
• Welding: The heat-affected zone (HAZ) around welds can locally reduce yield strength and introduce residual stresses. Post-weld heat treatment and correct filler selection are important to restore mechanical properties and maintain corrosion resistance.

Cold rolling or drawing of austenitic grades like 304 and 316 can increase yield strength from the annealed ~205 MPa up to 1000 MPa or more, at the cost of reduced ductility. The cold-worked condition must be specified separately and will have very different properties from annealed material. Selecting the appropriate stainless steel grade requires understanding these variables.

Applications of Yield Strength and Tensile Strength in Industries

Construction and Infrastructure Applications

Engineers use yield and tensile strength values when designing high-rise buildings, bridges, airports, metro systems, and industrial facilities. Strong stainless steel components help improve structural reliability and service life.

Automotive and Transportation Applications

The transportation sector relies on stainless steel for vehicle frames, rail coaches, marine components, and commercial vehicles. High strength-to-weight ratios contribute to improved efficiency and safety.

Industrial and Process Industry Applications

1. Chemical Processing Equipment

Chemical plants use stainless steel products because of their combination of strength and corrosion resistance. Equipment such as tanks, reactors, and pipelines must withstand pressure while maintaining structural integrity.

2. Heavy Engineering Systems

Heavy machinery and industrial systems often operate under extreme loading conditions. Strength properties help ensure safe and reliable performance throughout the equipment lifecycle.

Why Stainless Steel is Preferred in High-Strength Applications

Stainless steel is widely preferred because it offers:

• Excellent strength
• Superior corrosion resistance
• Long service life
• Low maintenance requirements
• Strong performance across diverse operating environments

These advantages make stainless steel a preferred material for critical applications.

How to Choose the Right Stainless Steel Grade

Selecting the right grade requires balancing mechanical performance, corrosion resistance, and cost considerations.

Factors to Consider During Grade Selection

Selecting the right stainless steel grade requires careful evaluation of several factors, including the required yield strength, required tensile strength, exposure to corrosive environments, operating temperature, fabrication requirements, and applicable regulatory standards. Understanding these properties helps engineers make informed decisions and choose materials that deliver reliable performance in their intended applications.

Industrial Selection Based on Mechanical Properties

Different industries prioritise different performance requirements based on their operational needs. Pressure vessel applications may focus more on tensile strength to ensure resistance to failure under high stress. Chemical processing environments typically require a combination of strength and corrosion resistance, while transportation applications often seek a balance between strength and weight to improve performance.

Yield Strength vs Tensile Strength: Making Smarter Material Selection Decisions

Understanding yield strength and tensile strength is fundamental to successful engineering design and material selection. While yield strength indicates the stress level at which permanent deformation begins, tensile strength measures the maximum stress a material can withstand before fracture.

By evaluating various parameters and the results of stainless steel testing, organisations can make informed decisions that enhance performance and safety. For industries seeking durability, corrosion resistance, and high strength, stainless steel continues to be one of the most versatile and reliable engineering materials available.
