What Is Yield Strength? Definition, Formula & Industrial Applications Explained

September 25, 2026

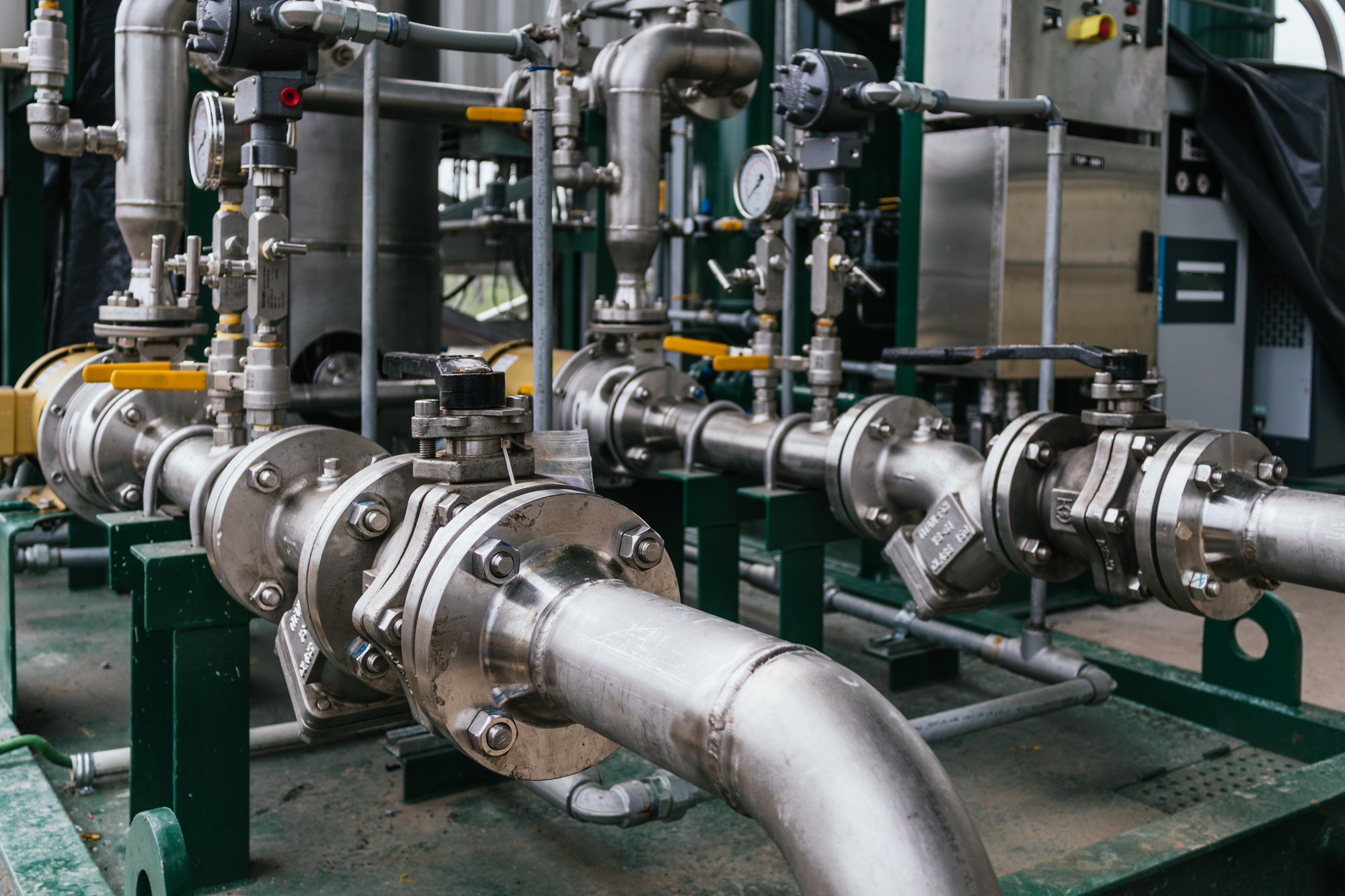

Industrial heat exchanger for heavy-duty applications.

Whether it’s a bridge carrying heavy loads, industrial equipment operating under pressure, or a structural component supporting critical infrastructure, materials must be able to withstand stress without permanently losing their shape.

This is where yield strength becomes important. By indicating the point at which a material begins to deform permanently, yield strength helps engineers and manufacturers select materials that deliver safety, reliability, and long-term performance.

What Is Yield Strength?

Yield strength is the stress at which a material begins to deform permanently and no longer returns to its original shape after the load is removed. Before reaching this point, the material experiences elastic deformation, meaning it returns to its original shape when the load is removed. Once the yield point is exceeded, permanent deformation occurs. For materials with a distinct yield point, such as low-carbon structural steel, this transition appears to be a sharp, visible break on the stress-strain curve (with an observable upper yield point and lower yield point). However, most stainless steels, including austenitic grades like 304, 316, and 201, do not exhibit such a sharp transition. For these materials, the yield strength is defined conventionally using the 0.2% offset method (also called proof stress or Rp0.2): the stress at which a material undergoes 0.2% permanent plastic strain after the load is removed. This is the standard value reported in mill test certificates and product datasheets.

The yield strength definition is closely linked to the mechanical properties of materials and their ability to withstand loads without changing shape. It is identified on a stress-strain curve, where the transition from elastic behaviour to permanent deformation takes place.

Understanding the meaning of yield strength is essential in engineering because it helps determine the material deformation point and the onset of plastic (permanent) deformation in metals, which is technically measured as the 0.2% proof stress (Rp0.2) for stainless steels, distinct from the theoretical elastic limit.

How Is Yield Strength Measured?

Yield strength is determined through a uniaxial tensile test, conducted per ASTM E8/E8M (US) or ISO 6892-1 (international). A standardised specimen, which is typically dog-bone shaped or cylindrical dumbbell-shaped (depending on product dimensions available) with predefined dimensions, is subjected to a gradually increasing tensile load while an extensometer measures the amount of deformation simultaneously. The resulting stress-strain curve is plotted and analysed.

For stainless steels which do not exhibit a sharp, visible yield point, the 0.2% offset method is used: a line is drawn parallel to the initial linear (elastic) portion of the stress-strain curve, offset by 0.2% strain (0.002). The stress at which this line intersects the actual curve is defined as the 0.2% proof stress (Rp0.2) – the standard yield strength value reported on Jindal Stainless mill test certificates and product datasheets- and this is also as per specifications mentioned in all major standards, including ASTM A240 and EN 10088.

Yield Strength Formula Explained

 Yield strength is a specific stress value derived from standardised tensile test data. The general engineering stress equation is:

σy = Fy / A₀

Where:

σy = Yield stress (MPa or N/mm²), the stress at the yield point or 0.2% offset point

Fy = Applied force at the yield point as determined during the tensile test (N)

A₀ = Original cross-sectional area of the test specimen (mm²)

This value is not derived algebraically; it requires conducting a tensile test per ASTM E8/E8M or ISO 6892-1, plotting the stress-strain curve and identifying the force at which 0.2% permanent deformation occurs (the 0.2% offset or proof stress method, denoted Rp0.2). This Rp0.2 value is what appears on Jindal Stainless mill test certificates.

Why Yield Strength Matters in Materials

The importance of yield strength lies in its ability to predict how a material will behave under working loads. It helps engineers ensure that components can perform safely without permanent deformation.

• Supports Structural Integrity: Helps materials maintain their shape under load.
• Enhances Safety: Reduces the risk of deformation in critical structures and equipment.
• Improves Load-Bearing Capacity: Ensures materials can safely support operational loads.
• Increases Durability: Helps components perform reliably over long service periods.
• Guides Material Selection: Assists engineers in choosing suitable load-bearing materials.
• Supports Design Standards: Plays an important role in meeting engineering design standards.

In structural design, components are never loaded to their yield strength. Engineers apply a factor of safety (FoS), which is typically 1.5 to 3 times for structural steel applications depending on the code, so that the actual working stress is a defined margin below yield/ plastic deformation. For example, a structural member in stainless steel with a yield strength of 205 MPa and a factor of safety of 2.0 would be designed for a maximum allowable stress of approximately 102 MPa. Yield strength is therefore not just the limit – it is the starting point for all load calculations.

Because of its role in deformation resistance in metals, yield strength remains a key consideration when selecting structural safety materials.

Difference Between Yield Strength and Tensile Strength

Although both properties measure material strength, they represent different stages of material behaviour under stress.

The yield vs tensile strength comparison is important because a material can continue carrying additional load after reaching its yield point. However, once the ultimate tensile strength is exceeded, fracture occurs.

Understanding deformation vs. fracture helps engineers select materials that balance strength, safety, and performance.

What Is the Yield Strength of Stainless Steel?

The stainless steel yield strength value varies depending on grade, alloy composition, and manufacturing process.

Different stainless steel grades are designed to meet specific performance requirements. As a result, the SS yield strength range differs across grades.

The table below provides indicative minimum yield strength values for commonly used stainless steel grades.

Note: All minimum yield strength values are 0.2% offset (Rp0.2) values for annealed flat-rolled product per ASTM A240/A240M. Values for other product forms (bar, pipe, wire) may differ per their respective ASTM specifications (A276, A312, A479, etc.). Actual as-delivered values may exceed minimums depending on product form and cold working history. Consult Jindal Stainless mill test certificates for certified values.

For example, 304 stainless steel yield strength makes it suitable for a wide range of general-purpose applications. Grades 304 and 316 share identical minimum yield strength values of 205 MPa in the annealed condition per ASTM A240. The selection of Grade 316 over 304 is driven not by yield strength, but by its 2–3% molybdenum content, which provides superior resistance to pitting, crevice corrosion and chloride attack – making it the preferred choice for marine environments, chemical processing and medical equipment applications.

Together with corrosion resistance and durability, these steel mechanical properties make stainless steel suitable for demanding industrial applications.

Factors Affecting Yield Strength in Metals

Several yield strength factors influence how a metal responds to applied loads.

1. Alloy Composition

The type and amount of alloying elements significantly affect strength. The relationship between alloy composition and strength is one of the most important considerations in material design.

2. Grain Structure

The size and arrangement of grains have a direct, quantifiable effect on yield strength. Finer grain sizes increase yield strength because grain boundaries act as barriers to dislocation motion; this is as per a relationship described quantitatively by the Hall-Petch equation (σy = σ₀ + k·d⁻¹/²). Manufacturing parameters such as rolling reductions, annealing temperature, and cooling rate all influence final grain size and therefore yield strength.

3. Material Processing

Processes such as rolling, drawing, forging, and cold working can alter the internal structure of a material and influence its yield strength.

If you take an example of Cold Working (Work Hardening) in Austenitic stainless steels such as grades 304 and 316, Cold working processes such as rolling, drawing or forming at room temperature introduce a high density of internal strain via dislocations in the crystal lattice, significantly raising yield strength. Grade 304 in the annealed condition has a minimum yield strength of 205 MPa; after heavy cold rolling, values can exceed 1200 MPa UTS, with yield strength increasing proportionally. This is why cold-rolled products have higher specified strength than hot-rolled annealed products. For applications requiring very high strength, cold-worked temper conditions (e.g., 1/4 hard, 1/2 hard, full hard) are specified.

4. Heat Treatment

Certain metals can undergo heat treatment to improve strength and hardness. The effectiveness of heat treatment in metals depends on the alloy and microstructure.

5. Product Form

Sheets, plates, bars, tubes, and pipes may exhibit different strength values depending on their processing history and dimensions.

6. Industrial Applications of Yield Strength

The ability to resist permanent deformation makes yield strength an important consideration across industries.

7. Construction Industry

Buildings, bridges, and infrastructure projects require materials with sufficient yield strength to maintain stability under load. High-strength duplex grades such as 2205 (min. yield 450 MPa) allow thinner sections in structural applications compared to austenitic grades, reducing material weight while maintaining load capacity. Grade 316 is the minimum preferred grade for exposed coastal or marine structures where chloride-induced corrosion is a concern.

8. Automotive Sector

Automotive manufacturers use materials with appropriate yield strength to improve safety, durability, and performance while optimisingoptimising weight. Grade 409 and 439 (ferritic, approx. 170–205 MPa YS) are standard for exhaust systems; Grade 201 (≥ 260 MPa YS) serves as a cost-effective austenitic option for automotive trim and structural reinforcements.

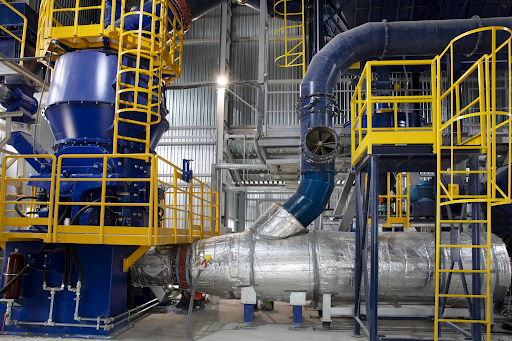

9. Energy and Process Industries

Power plants, refineries, and processing facilities require materials that can maintain structural integrity under pressure and demanding operating conditions. Grade 316L is standard in pharmaceutical and chemical process vessels; duplex 2205 and super duplex 2507 are preferred for offshore platforms and desalination equipment where both high strength and chloride resistance are essential requirements.

10. Transportation and Infrastructure

Railway systems, airports, ports, and public infrastructure projects use materials with reliable strength characteristics to support long-term performance. Grades 409 and 415 are used in railway coach bodies and structural panels; higher-strength duplex grades are increasingly used in bogie frames and undercarriage components where yield-strength-to-weight ratio is critical.

These examples highlight the importance of yield strength in structural engineering materials and other forms of industrial metal use.

Why Understanding Yield Strength Matters

Yield strength helps engineers understand how much stress a material can withstand before permanent deformation occurs. Combined with properties such as tensile strength, corrosion resistance, and durability, it plays an important role in selecting materials for safe, reliable, and long-term performance across industrial and structural applications.
