Tensile Strength in Metals and Stainless Steel: What You Need to Know

September 27, 2026

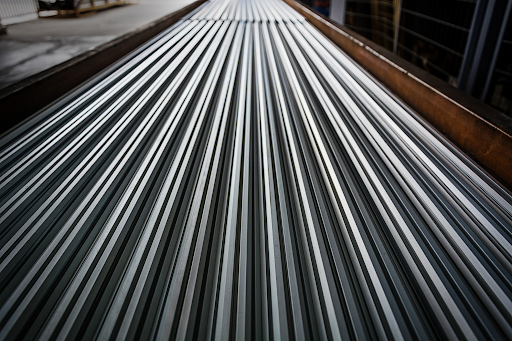

 Stainless steel profiles showcase the strength and durability

Metals are selected for engineering and industrial applications based on their ability to withstand various forces and operating conditions. Among the many mechanical properties used to evaluate materials, tensile strength is one of the most important.

It helps engineers determine how much pulling force a material can withstand before it breaks, making it a critical factor in everything from buildings and bridges to industrial equipment and transportation systems.

Understanding tensile strength allows manufacturers, designers, and project teams to select materials that deliver the required levels of safety, durability, and performance.

What is Tensile Strength?

 Tensile strength refers to the maximum stress a material can withstand while being stretched, before it begins to neck and lose load-bearing capacity. In ductile metals such as stainless steel, fracture actually occurs slightly after this peak stress is reached, once the material has started to neck. It is one of the most widely used measurements for evaluating the mechanical properties of metals and other engineering materials.

In simple terms, tensile strength measures a material’s ability to resist forces that attempt to stretch, pull, or elongate it. It is typically expressed as force per unit area and is commonly measured in megapascals (MPa).

The tensile strength definition is closely related to how a material behaves under load. During a tensile test, a sample is gradually pulled apart until it breaks.  This peak stress, i.e. the highest point on the stress-strain curve, occurring at the onset of necking, is the material’s ultimate tensile strength (UTS). The actual stress at the moment of fracture is technically lower than UTS for ductile materials, since the load-bearing cross-section has already begun shrinking by that point.

On the other hand, the Yield strength marks the point on the stress-strain curve where a material stops deforming elastically (i.e., springing back to its original shape – away from the linear regime) and begins to deform plastically (i.e., permanently). For structural and pressure-vessel design, yield strength, and not UTS, is usually considered an important parameter, since most engineering codes size components are designed to stay below yield, with UTS serving mainly as a final safety margin.

Understanding the meaning of tensile strength also requires distinguishing between stress and strain:

1. Stress refers to the force applied per unit area.
2. Strain refers to the amount of deformation caused by the applied force.

Note: tensile strength values reported by mills (including those in this article) are “engineering stress” values, calculated using the specimen’s original cross-sectional area and not the smaller, actual area present at the moment of necking or fracture.

Together, these measurements help engineers evaluate material strength, flexibility, and overall performance under load.

How Is Tensile Strength Measured?

Tensile strength is determined through a tensile test, where a standardised sample is gradually pulled apart using a universal testing machine until fracture occurs. The results are recorded on a stress-strain curve, allowing engineers to evaluate properties such as yield strength, ultimate tensile strength (UTS), and elongation. These measurements help predict how a material will perform under real-world loading conditions.

What Makes a Material High in Tensile Strength?

A material is considered to have high tensile strength when it can withstand substantial pulling forces before breaking.

High tensile strength materials are commonly used in applications where structural integrity and load-bearing capacity are critical. Examples include high-strength steels, stainless steels, titanium alloys, and specialisedspecialized engineering alloys.

Several factors contribute to high tensile strength:

1. Alloy composition
2. Grain structure
3. Manufacturing processes
4. Heat treatment
5. Cold working and strengthening mechanisms

Materials with high tensile strength are often selected for demanding applications because they can support greater loads while maintaining structural stability and durability.

Tensile Strength vs  Toughness: What’s the Difference?

Although tensile strength and tearing strength are both measures of material performance, they evaluate different aspects of how a material behaves under stress.

Note: standardised “tearing strength” tests (e.g., Elmendorf tear test) are primarily used for textiles, paper, plastic film and rubber. For solid metals such as stainless steels, the closer practical comparison is toughness, which is typically measured via Charpy or Izod impact testing; therefore, this is included here for conceptual contrast.

Understanding the difference between tensile and tearing strength helps engineers select materials not only for their ability to withstand applied loads but also for how they may behave when subjected to damage or defects in service.

Why Tensile Strength Matters in Metals?

Tensile strength plays a critical role in determining how a metal will perform under load and stress. It helps engineers and manufacturers select materials that can deliver the required levels of safety, durability, and reliability in real-world applications.

1. Supports Structural Integrity: Helps components withstand applied forces without breaking or experiencing excessive deformation.
2. Enhances Safety: Reduces the risk of material failure in critical applications such as bridges, pipelines, pressure vessels, and industrial equipment.
3. Improves Load-Bearing Capacity: Ensures that structures and components can handle operational loads effectively. In pressure-vessel design codes such as ASME Section II, allowable design stress for austenitic stainless steels like 304 and 316 is typically based on roughly two-thirds of yield strength (with tensile strength governing a separate, larger safety margin), which means that the published yield strength of a grade, not just its tensile strength, directly sets how thin a wall or how light a component can safely be designed.
4. Increases Durability: Enables materials to maintain performance over extended periods, even in demanding environments.
5. Guides Material Selection: Helps engineers choose the right metal based on application-specific strength requirements.
6. Optimises Lifecycle Costs: Selecting materials with appropriate tensile strength can minimise maintenance, repairs, and premature replacements.

Because of its direct impact on performance and reliability, tensile strength remains a key consideration across industries such as construction, manufacturing, transportation, energy, and infrastructure.

What is the Tensile Strength of Stainless Steel?

The tensile strength of stainless steel varies depending on the grade, chemical composition, and manufacturing process.

Austenitic stainless steels such as 304 and 316 are widely used because they provide an excellent balance of strength, corrosion resistance, formability, and durability.

Below is a general comparison of tensile strength values for commonly used stainless steel grades:

Disclaimer: Values shown are minimum requirements per ASTM A240 for annealed flat-rolled product (plate, sheet, strip). Bar, forging, and welded pipe/tube forms are governed by different standards (e.g., ASTM A276, A479, A312) and may carry different minimums. Cold-worked or precipitation-hardened conditions exceed these annealed minimums substantially.

The tensile strength of stainless steel makes it suitable for a wide range of applications requiring both mechanical performance and corrosion resistance. Grades such as 304 and 316 continue to be widely used across industries due to their versatility and reliability.

Factors That Affect Tensile Strength in Stainless Steel

Several factors influence the tensile strength of stainless steel. Here are a few of them:

1. Alloy Composition

The type and amount of alloying elements significantly affect strength. Elements such as chromium, nickel, molybdenum, and nitrogen contribute to the mechanical and corrosion-resistant properties of stainless steel.

2. Grain Structure

The size and arrangement of grains within the metal influence how it responds to stress. Finer-grain structures generally improve strength and toughness.

3. Cold Working

Processes such as rolling, drawing, and forming can increase tensile strength by altering the material’s internal structure.

4. Heat Treatment

 Heat-treatment response depends on the stainless steel family. Martensitic grades (e.g., 410, 420) can be hardened through quench-and-temper heat treatment to substantially raise strength. Austenitic grades (304, 316L) cannot be strengthened by heat treatment; perhaps annealing restores ductility after cold working rather than increasing strength. Duplex and ferritic grades are generally non-hardenable by heat treatment; their strength is set largely by composition and grain structure.

5. Manufacturing Process

Product form and manufacturing methods can influence final tensile strength values. For example, sheets, plates, bars, and pipes may exhibit different mechanical properties based on their processing history.

Applications of High Tensile Strength Stainless Steel

The combination of strength, durability, and corrosion resistance makes high tensile strength stainless steel valuable across numerous industries.

1. Construction Industry

High-strength stainless steel is used in structural components, bridges, facades, roofing systems, and infrastructure projects where load-bearing capability and long-term durability are important.

2. Automotive Sector

 The automotive industry uses stainless steel extensively in exhaust systems, structural components, fuel systems and safety-critical parts. Grade selection here is driven as much by heat resistance and cost as by tensile strength alone: 409 (ferritic) is the most common OEM exhaust grade for its low cost and adequate heat/corrosion resistance, 304/304L (austenitic) is used where better corrosion resistance or formability is needed and 316L is reserved for premium or high-chloride-exposure applications such as marine-adjacent or de-icing-salt-heavy environments.

3. Heavy Machinery

Industrial machinery, material handling equipment, and manufacturing systems rely on high-strength stainless steel components to withstand demanding operating conditions and repetitive loading.

4. Energy and Process Industries

Power generation facilities, refineries, and chemical processing plants frequently use stainless steel equipment that must maintain mechanical integrity while operating under pressure, temperature fluctuations, and corrosive conditions. Equipment in these sectors is typically designed to ASME Boiler and Pressure Vessel Code (BPVC) allowable stress values, which decrease a material’s published tensile and yield strength values by a built-in safety margins rather than using the as-tested values directly.

5. Transportation and Infrastructure

Railway systems, ports, airports, and public infrastructure projects often utilise stainless steel because it combines mechanical strength with excellent resistance to environmental degradation.

Why Tensile Strength Remains a Critical Material Property

Tensile strength is one of the most important indicators of a material’s ability to perform safely and reliably under load. It helps engineers evaluate how metals respond to pulling forces and plays a key role in material selection across industries. In stainless steel, tensile strength works alongside corrosion resistance, toughness, and durability to deliver dependable performance in demanding applications.
