How to Choose the Right Stainless Steel Fabrication Techniques for Your Needs

September 5, 2026

Precision fabrication of stainless steel.

From railways and skyscrapers to kitchen appliances and medical equipment, stainless steel is a foundation of modern design and infrastructure. But long before it reaches its final form, stainless steel undergoes a process that determines its strength, finish, and durability.

Stainless steel’s performance depends not only on its grade but also on how it is fabricated. The choice of cutting, forming, welding, machining and finishing processes directly influences dimensional accuracy, corrosion resistance, mechanical strength, surface quality, production efficiency and lifecycle cost. Selecting the wrong fabrication technique can lead to distortion, premature corrosion, excessive manufacturing costs or reduced product life. This guide explains how different fabrication methods work, when each should be used and the key engineering factors to consider when choosing the right process for your application.

What Is Stainless Steel Fabrication?

Stainless steel fabrication refers to the set of processes used to transform flat stainless steel products into usable components or structures. Fabrication brings out the versatility of stainless steel, allowing it to adapt to countless applications across sectors like construction, transport, healthcare, and consumer goods.

The fabrication route depends on several engineering factors, including stainless steel grade, material thickness, dimensional tolerances, production volume, required surface finish, corrosion environment and end-use application. Selecting the appropriate process ensures optimal product performance while minimising manufacturing costs and production defects.

Common Stainless Steel Grades and Their Fabrication Characteristics

Most Common Stainless Steel Fabrication Techniques

Cutting

Cutting is often the first stage in fabrication. Depending on the thickness of the material and the shape required, different methods are used:

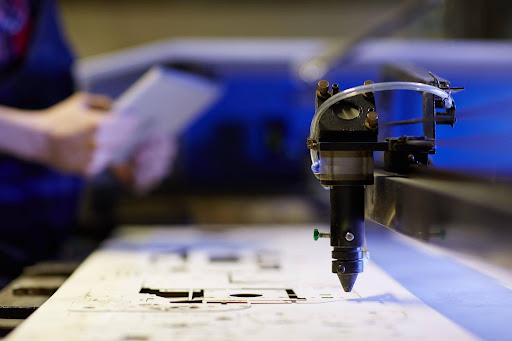

1. Laser Cutting: A concentrated laser beam melts or vaporises the alloy along a precise path, guided by automated systems. This process delivers highly accurate cuts with minimal burring and a clean edge finish, making it ideal for detailed and decorative work. Best suited for: Precision components, architectural panels, food processing equipment, decorative parts, and applications requiring minimal post-processing.
2. Plasma Cutting: An electrically conductive gas is used to generate a focused plasma arc that melts through the alloy. It’s well-suited for thicker sheets and structural elements. The resulting cut is fast and relatively smooth, though it may require minor post-processing depending on tolerance needs. Best suited for: Thick structural plates, bridges, heavy fabrication, and construction.
3. Waterjet Cutting: A high-pressure jet of water, often combined with abrasive particles, erodes the alloy along the cutting line. As there’s no heat involved, it eliminates thermal distortion and leaves a clean, uniform finish with minimal edge roughness. Best suited for: Heat-sensitive materials, thick plates, intricate profiles, and applications requiring no heat-affected zone.
4. Mechanical Sawing: A toothed blade moves mechanically to cut through the material. It’s commonly used for straight or simple cuts. While the finish is consistent, it may need light secondary finishing based on the application’s surface quality requirements.
5. Shearing: The sheet is clamped and sliced between two blades using high force, much like a large pair of scissors. This method is effective for straight-line cuts in thinner gauges, offering a crisp, burr-free edge suitable for further processing.
6. Abrasive Disc Cutting: A high-speed rotating abrasive wheel grinds through the material. It’s useful for a range of thicknesses but typically leaves a coarser edge, often requiring additional finishing like deburring or polishing.

Bending and Forming

Forming processes give stainless steel its shape. These techniques are used in both light and heavy fabrication jobs:

1. Press Braking: A stainless steel sheet is clamped and bent along a straight axis using a punch and die. The process is highly controlled and delivers precise, angular bends with minimal surface distortion. Press braking produces clean, defined edges, ideal for panels, enclosures, and architectural elements.
2. Roll Forming: The material passes through successive rollers that gradually form it into the desired profile. This continuous method is suited for long lengths and complex shapes. It offers uniformity in bends and a smooth surface finish along the formed profile, making it ideal for channels, angles, and tubes.
3. Hot Bending: The material is heated to high temperatures to increase flexibility and then bent to shape. This technique is often used for thicker sections or tighter radii that cannot be achieved through cold forming. The surface finish may require post-processing, as scaling or discolouration can occur due to heat exposure.

During forming, engineers must consider springback, minimum bend radius, work hardening, and grain direction. Austenitic stainless steels exhibit greater springback than carbon steels, often requiring over-bending to achieve the desired angle. Improper forming can lead to cracking, excessive residual stress or dimensional inaccuracies.

Forming

1. Hydraulic Press Forming: Hydraulic pressure is applied gradually over a large surface area to shape the alloy into molds or dies. This method ensures consistent thickness and smooth contours, particularly effective for deep drawing or large parts. The result is a well-formed part with minimal surface marks.
2. Spinning: A flat metal disc is rotated at high speed while being pressed against a forming tool to create a symmetrical shape, typically round or conical. Often used for producing vessels, covers, or domes, spinning provides a uniform surface and seamless form, though minor tool marks may be visible unless polished.

Welding

Welding is essential for joining stainless steel components. The methods used depend on the thickness, finish, and strength requirements of the project:

1. TIG Welding (Tungsten Inert Gas): This method uses a non-consumable tungsten electrode and inert gas to create precise, controlled welds. Ideal for thin sheets and areas where appearance matters, TIG welding delivers clean, spatter-free seams with minimal heat distortion. It results in high-quality welds that often require little to no finishing in visible applications.
2. MIG Welding (Metal Inert Gas): A wire electrode is fed through a welding gun while shielding gas protects the weld pool. MIG welding is faster and more suited for thicker materials or production-heavy environments. Though slightly less refined than TIG, it still achieves solid, consistent joints with moderate surface smoothness, often followed by grinding or polishing.
3. Spot Welding: This resistance-based method uses electrodes to clamp and heat overlapping sheets, fusing them at specific points. Commonly used in automotive and appliance manufacturing, it produces quick and reliable joints. The finish is typically neat at the contact points, though it may require touch-up or surface blending for exposed applications.

Welding parameters such as heat input, filler metal selection, shielding gas composition, and joint preparation significantly affect weld quality. Excessive heat can create larger heat-affected zones (HAZ), increasing distortion and reducing corrosion resistance if not properly controlled. Post-weld cleaning, pickling and passivation are often required to restore corrosion resistance.

Machining

Machining ensures dimensional precision in stainless steel components, especially for critical or complex designs.

1. CNC Milling: Uses a rotating cutter and computer-guided controls to remove material and form complex shapes with high accuracy.
2. Drilling: Rotates a cutting tool to create precise holes in stainless steel for assembly or structural purposes.
3. Turning: Involves rotating the workpiece on a lathe while a fixed cutting tool removes material to shape cylindrical parts like rods and shafts.

Stainless steel is more difficult to machine than carbon steel due to its tendency to work harden and its relatively low thermal conductivity. Optimised cutting speeds, rigid tooling, carbide inserts and effective coolant application are essential to achieve dimensional accuracy while extending tool life.

Finishing

Finishing processes improve appearance, surface integrity, and performance under specific environmental conditions.

1. Grinding
2. Polishing and Buffing: Abrasive wheels or belts smoothen the surface, reducing roughness and enhancing reflectivity or satin finish.
3. Pickling
4. Passivation: Involves submerging stainless steel in an acid bath (typically nitric or citric acid) to dissolve free iron. Therefore, Passivation removes free iron contamination from the stainless steel surface, allowing a uniform chromium-rich passive oxide layer to naturally reform, thereby restoring optimum corrosion resistance.
5. Electropolishing
6. Protective Coating: Although stainless steel generally relies on its naturally occurring passive oxide layer for corrosion protection, specialised coatings such as powder coating, PTFE or PVD coatings may be applied for decorative purposes or enhanced wear resistance in specific applications, via spraying, dipping, or electrostatic methods, depending on the application.

Factors to Consider When Choosing a Fabrication Technique

Type and Grade of Stainless Steel

Each stainless steel grade has its own characteristics. Austenitic grades like 304 are easy to form and weld, while Duplex stainless steel or martensitic grades may require specialised equipment and expertise.

Intended Application

Fabrication methods must match the final use of the product. In the food and pharma industries, smooth and sanitary finishes are essential. In construction, load-bearing strength takes priority. Consumer products often call for aesthetic detailing.

Complexity of Design

Simple components can be cut and shaped with basic tools. For more intricate or three-dimensional parts, processes like laser cutting and CNC machining are better suited.

Tolerance and Precision Requirements

Projects that require exact dimensions, like medical instruments or machine parts, often rely on CNC machining and TIG welding to meet strict tolerance levels.

Budget and Timeline

Fabrication choices also depend on available budget and time. High-speed methods like stamping and MIG welding help keep costs and production time low, especially for large batches.

Volume of Production

The number of units required influences the process. Low-volume jobs might use manual or semi-automated techniques. High-volume manufacturing calls for automation and repeatability, such as roll forming or stamping.

Manufacturing Tolerances

Fabrication processes offer different levels of dimensional accuracy. Laser cutting and CNC machining provide tighter tolerances than plasma cutting or conventional sawing. Selecting the appropriate process depends on the precision required by the final product.

Best Fabrication Techniques by Industry

1. Construction: Structural members, bridges, metro stations, handrails and architectural façades commonly use laser cutting, press braking and MIG welding to balance structural strength with fabrication efficiency.
2. Food & Pharmaceuticals: 316L stainless steel, TIG or orbital welding, electropolishing and passivation are widely used to meet stringent hygiene requirements.
3. Automotive: Exhaust systems, trims and structural components rely on laser cutting, robotic MIG welding and CNC machining for high-volume production.
4. Consumer Products: Demands visually appealing finishes and mass production techniques like stamping and buffing.

Quality Control and Inspection

Visual Inspection

• Dimensional Inspection
• Dye Penetrant Testing
• Ultrasonic Testing
• Surface Roughness Measurement
• Weld Inspection

Typical Stainless Steel Fabrication Workflow

Material Selection – Cutting – Forming – Edge Preparation – Welding – Grinding – Pickling – Passivation – Inspection – Final Finishing

Choosing the right stainless steel fabrication technique requires balancing material grade, design complexity, precision, production volume, cost and long-term performance. Rather than relying on a single process, manufacturers often combine cutting, forming, welding, machining and finishing techniques to achieve the desired outcome. Understanding the strengths and limitations of each method enables engineers and manufacturers to improve product quality, optimise manufacturing efficiency and maximise the service life of stainless steel components.
